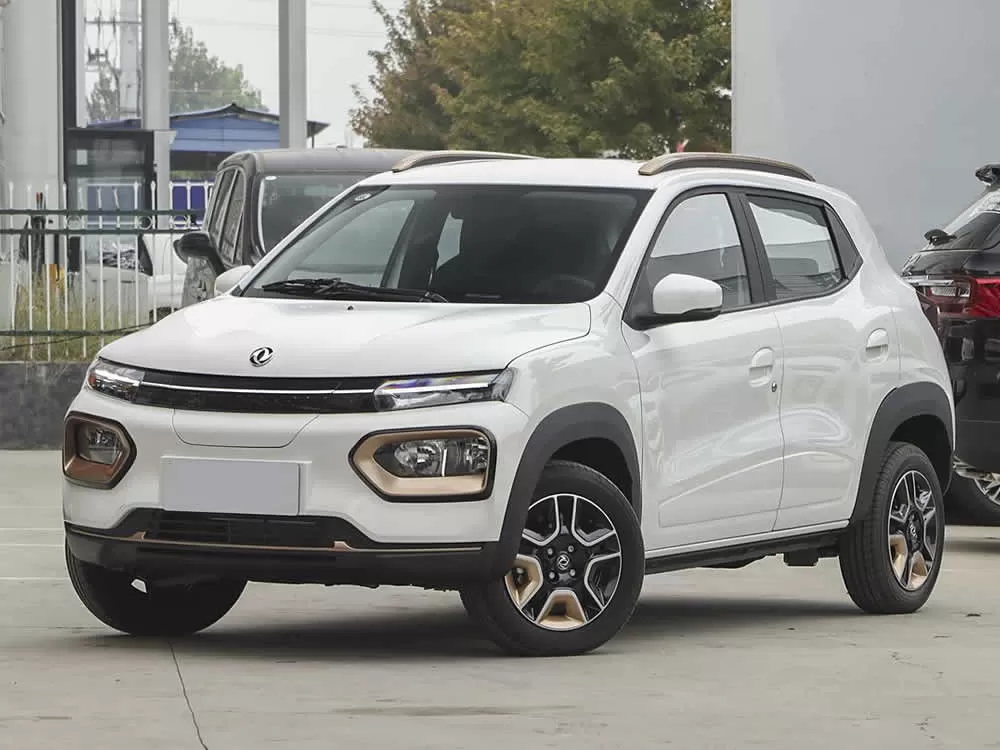

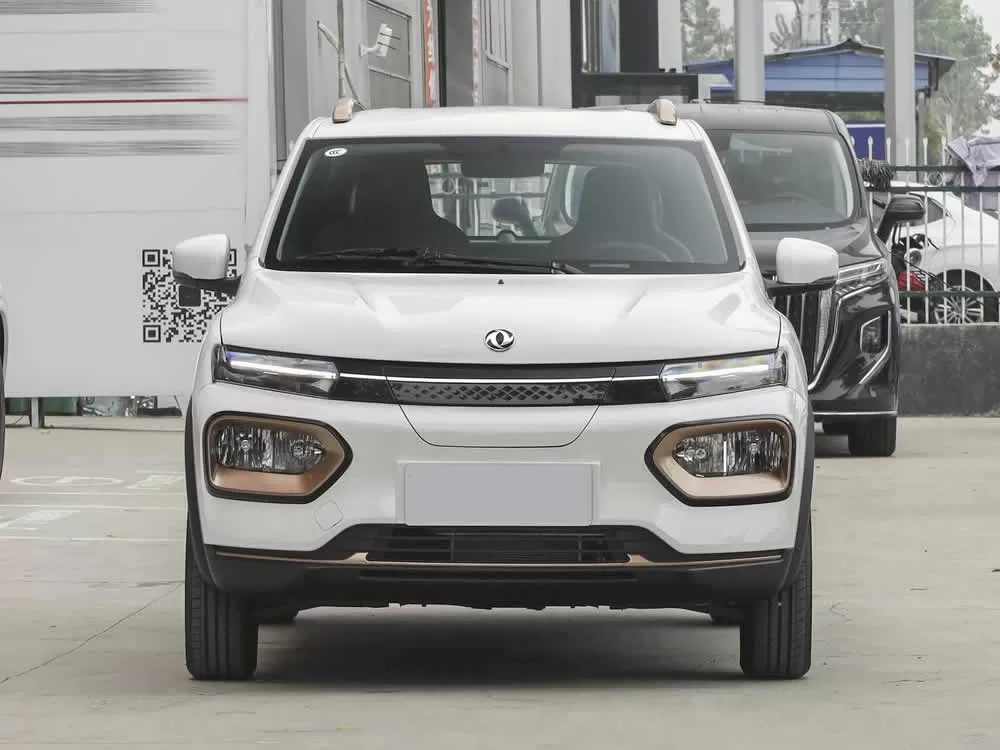

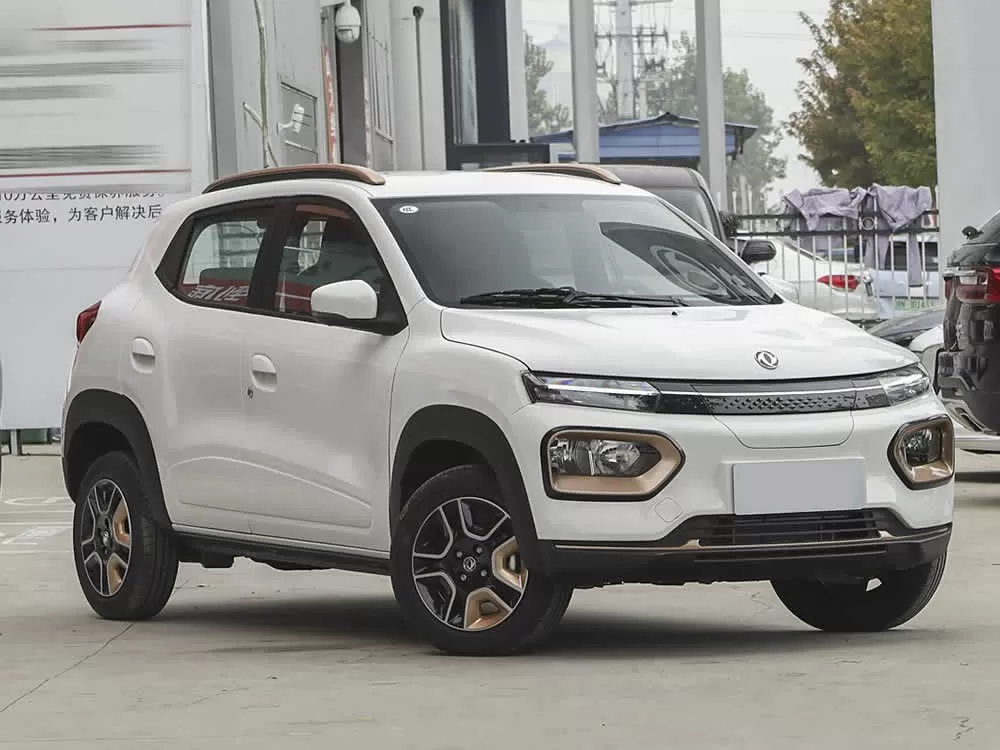

Dongfeng NAMMI BOX 2022 is a micro pure electric SUV produced by Dongfeng Automobile for urban commuting scenes. The body size is 3732×1579×1515mm, the wheelbase is 2423mm, and it adopts a five-door and five-seat layout. The overall shape is based on the square box style, combined with the floating roof and double-color body design, presenting a youthful and fashionable atmosphere. The front face adopts a closed grille with a polygonal light group. Some models are equipped with a contrasting roof and candy-colored appearance. The door adopts a flat door design. The tire specification is 165/70 R14, and the braking system adopts a front ventilated disc + rear drum combination.
Dongfeng NAMMI BOX 2022 is equipped with a front single motor, with a maximum power of 33kW (45 horsepower), a peak torque of 125N·m, and a maximum speed of 100km/h. The battery pack provides three CLTC endurance versions of 201km, 331km and 351km, matched with 27.17kWh ternary lithium battery, supporting 0.5-hour fast charging (30%-80%) and 4-hour slow charging mode. The chassis adopts a combination of front McPherson independent suspension + rear longitudinal arm torsion beam non-independent suspension, equipped with an electric power steering system, and a minimum turning radius of 4.6 meters, which optimizes the flexibility of urban travel.
The 2022 model is divided into two series: Light Breeze Edition and Chasing Wind Edition:

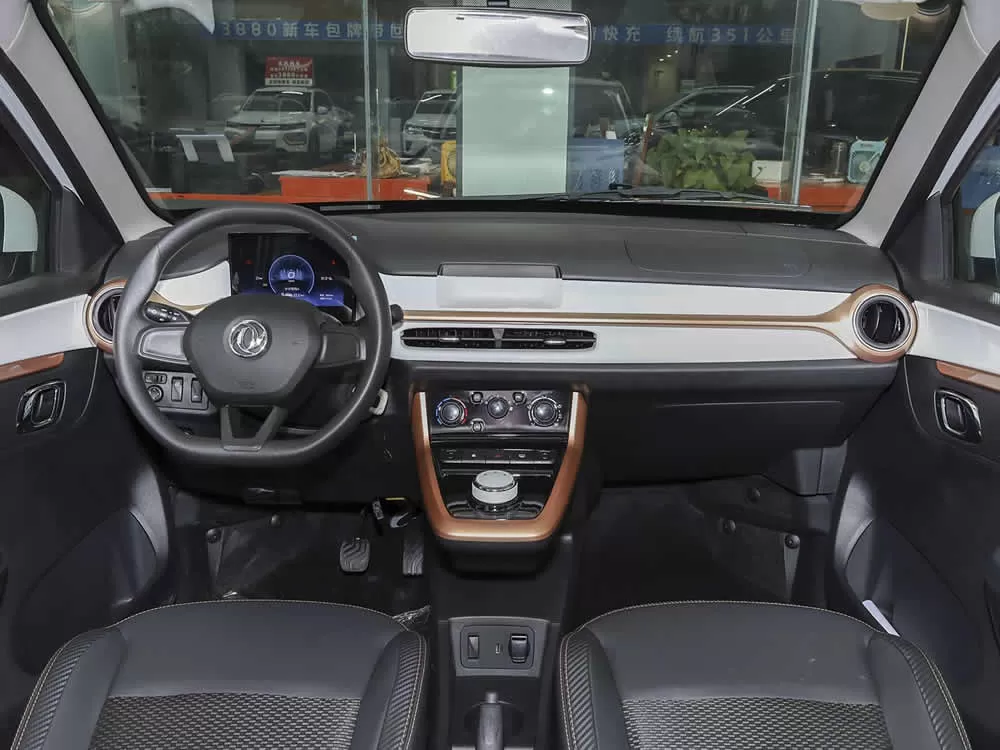

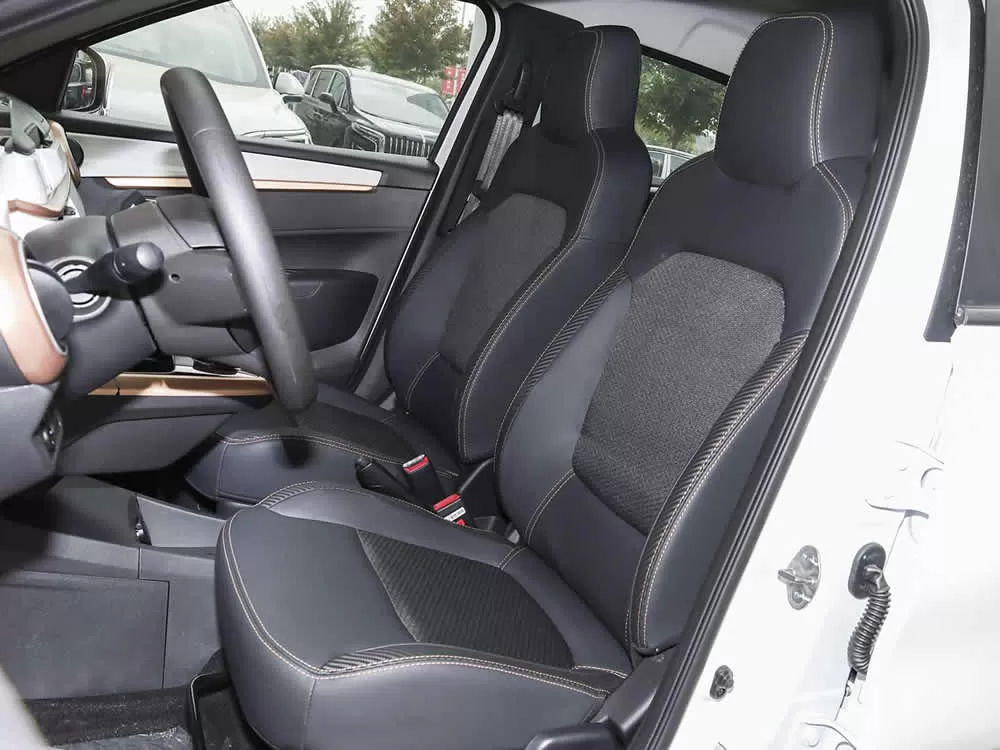

The Light Breeze Edition focuses on basic transportation needs. The standard model is equipped with fabric seats, manual air conditioning and USB interface. The interior is mainly dark, and it is standardly equipped with a 7-inch LCD instrument and a mechanical handbrake;
The Chasing Wind Edition advanced model upgrades the 10-inch central control screen, supports reversing images and mobile phone interconnection functions, and some high-end models add leather seat stitching technology and cruise control system, and the endurance is increased to 351km version. The rear seats in the car can be folded down as a whole, the trunk volume can be expanded to 1107L, and the inner side of the door is equipped with a deep storage slot.
Dongfeng NAMMI BOX safety configuration is standard for all series, including ABS+EBD, tire pressure monitoring and body stability control, and high-end models add driver airbags and reversing radar. The battery pack adopts IP67 protection level and integrates low-temperature preheating technology to ensure charging efficiency and endurance stability in -20℃ environment. The car reduces maintenance costs through modular design, making it a cost-effective choice for short-distance commuting in cities and family connections.
|
Configuration parameters |
2022 331km Light Wind Edition |
2022 331km Wind Chaser Edition |
2022 351km Lightning Edition |
|
Basic Parameters |
|||
|
Availability |
2022.07 |
2022.07 |
2022.11 |
|
level |
Small SUV |
Small SUV |
Small SUV |
|
Energy Type |
Pure Electric |
Pure Electric |
Pure Electric |
|
CLTC pure electric cruising range (km) |
331 |
331 |
351 |
|
Body |
|||
|
Body structure |
5-door 4-seater SUV |
5-door 4-seater SUV |
5-door 4-seater SUV |
|
Length(mm) |
3732 |
3732 |
3732 |
|
Width(mm) |
1579 |
1579 |
1579 |
|
Height(mm) |
1515 |
1515 |
1515 |
|
Wheelbase(mm) |
2423 |
2423 |
2423 |
|
Electric Motor |
|||
|
Total motor power (kW) |
33 |
33 |
33 |
|
Total motor horsepower (Ps) |
45 |
45 |
45 |
|
Total torque of the motor (N·m) |
125 |
125 |
125 |
|
Number of drive motors |
Single motor |
Single motor |
Single motor |
|
Motor layout |
Pre |
Pre |
Pre |
|
Battery / Charging |
|||
|
Battery Type |
Ternary lithium battery |
Ternary lithium battery |
Ternary lithium battery |
|
CLTC pure electric cruising range (km) |
331 |
331 |
351 |
|
Battery energy (kWh) |
27.17 |
27.17 |
28.9 |
|
Fast charging function |
support |
support |
support |
|
Battery fast charging time (hours) |
0.5 |
0.5 |
0.5 |
|
Battery slow charging time (hours) |
4 |
4 |
4 |
|
Transmission |
|||
|
Gearbox Type |
Fixed gear ratio gearbox |
Fixed gear ratio gearbox |
Fixed gear ratio gearbox |
|
Chassis steering |
|||
|
Drive mode |
Front front drive |
Front front drive |
Front front drive |
|
Front suspension type |
McPherson independent suspension |
McPherson independent suspension |
McPherson independent suspension |
|
Rear suspension type |
Torsion beam non-independent suspension |
Torsion beam non-independent suspension |
Torsion beam non-independent suspension |
|
Wheel brakes |
|||
|
Front brake type |
Ventilated disc |
Ventilated disc |
Ventilated disc |
|
Rear brake type |
Drum |
Drum |
Drum |
|
Parking brake type |
Handbrake |
Handbrake |
Handbrake |
|
Passive safety |
|||
|
Driver/passenger airbag |
Main/Secondary |
Main/Secondary |
Main/Secondary |
|
Active safety |
|||
|
ABS anti-lock braking system |
● |
● |
● |
|
Braking force distribution (EBD/CBC, etc.) |
● |
● |
● |
|
Brake assist (EBA/BAS/BA, etc.) |
- |
- |
- |
|
Tire pressure monitoring function |
Tire pressure alarm |
Tire pressure alarm |
Tire pressure alarm |
|
Driving control |
|||
|
Driving mode switch |
economy |
economy |
economy |
|
Driving Hardware |
|||
|
Front/rear parking radar |
Front / Rear |
Front / Rear |
Front / Rear |
|
Driving Features |
|||
|
Cruise control system |
- |
- |
- |
|
Appearance / anti-theft |
|||
|
Rim material |
steel |
Aluminum Alloy |
Aluminum Alloy |
|
Exterior lighting |
|||
|
Low beam light source |
halogen |
halogen |
halogen |
|
High beam light source |
halogen |
halogen |
halogen |
|
Skylight / Glass |
|||
|
Front/rear electric windows |
Front/Back |
Front/Back |
Front/Back |
|
Exterior mirrors |
|||
|
Exterior mirror function |
Electric adjustment |
Electric adjustment |
Electric adjustment |
|
Screen / System |
|||
|
Central control color screen |
- |
Touch LCD screen |
Touch LCD screen |
|
Central control screen size |
- |
10 inches |
10 inches |
|
Intelligent Configuration |
|||
|
Internet of Vehicles |
- |
- |
- |
|
Mobile APP remote function |
- |
Door control, vehicle start, charging management, air conditioning control, vehicle condition query/diagnosis, vehicle positioning/car search |
Door control, vehicle start, charging management, air conditioning control, vehicle condition query/diagnosis, vehicle positioning/car search |
|
Steering wheel /interior mirror |
|||
|
Steering wheel material |
plastic |
plastic |
plastic |
|
Gear shifting |
Electronic knob shift |
Electronic knob shift |
Electronic knob shift |
|
Trip computer display screen |
color |
color |
color |
|
Full LCD instrument panel |
LCD instrument size 7 inches |
LCD instrument size 7 inches |
LCD instrument size 7 inches |
|
In-car charging |
|||
|
Multimedia/charging port |
USB |
USB |
USB |
|
Seating Configuration |
|||
|
Seat Material |
Leather/Fabric Mix |
imitation leather |
Leather/Fabric Mix |
|
Main seat adjustment |
Front and rear adjustment, backrest adjustment |
Front and rear adjustment, backrest adjustment |
Front and rear adjustment, backrest adjustment |
|
Co-seat adjustment method |
Front and rear adjustment, backrest adjustment |
Front and rear adjustment, backrest adjustment |
Front and rear adjustment, backrest adjustment |
|
Audio /Interior Lighting |
|||
|
Number of speakers |
2 speakers |
2 speakers |
2 speakers |
|
Air conditioning / refrigerator |
|||
|
Air conditioning temperature control method |
Manual air conditioning |
Manual air conditioning |
Manual air conditioning |
|
color |
|||
|
Appearance Color |
Sakura Pink Trend Cabin |
Protein Energy Capsule |
Black Coffee Energy Cabin |
|
Interior Color |
Blue/White |
Blue/White |
Black/Gold |
