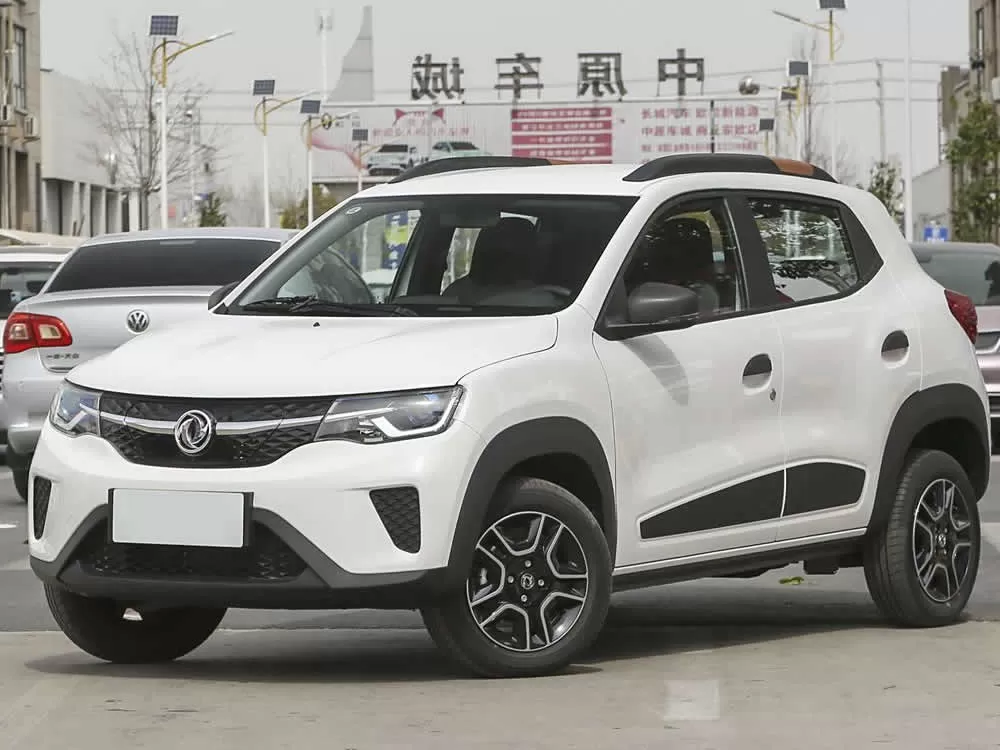

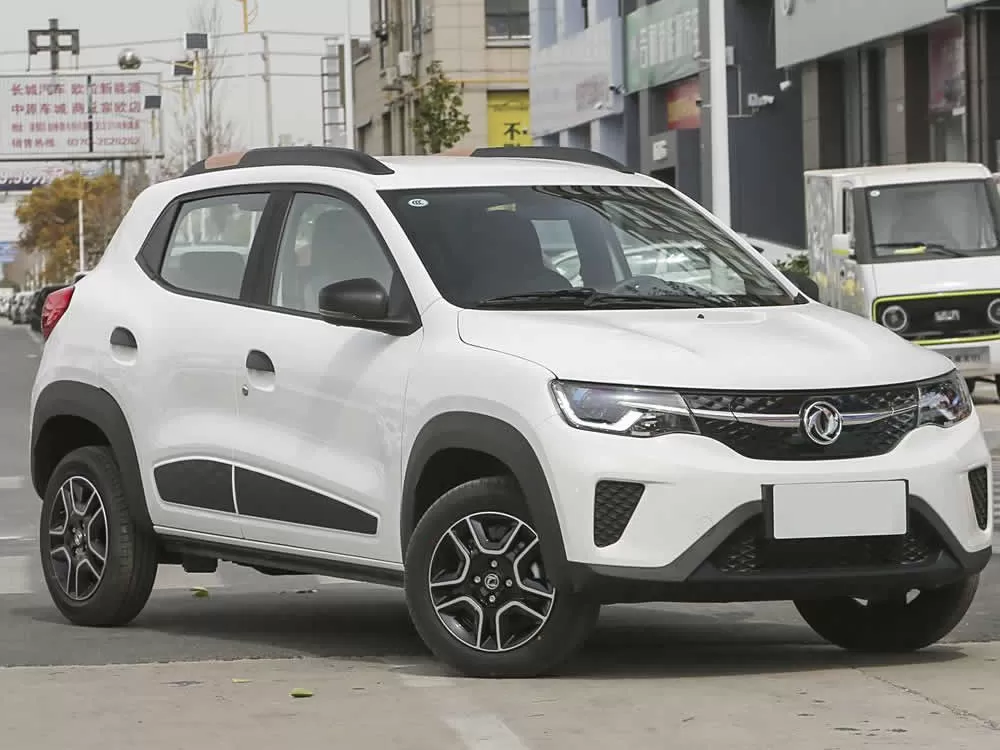

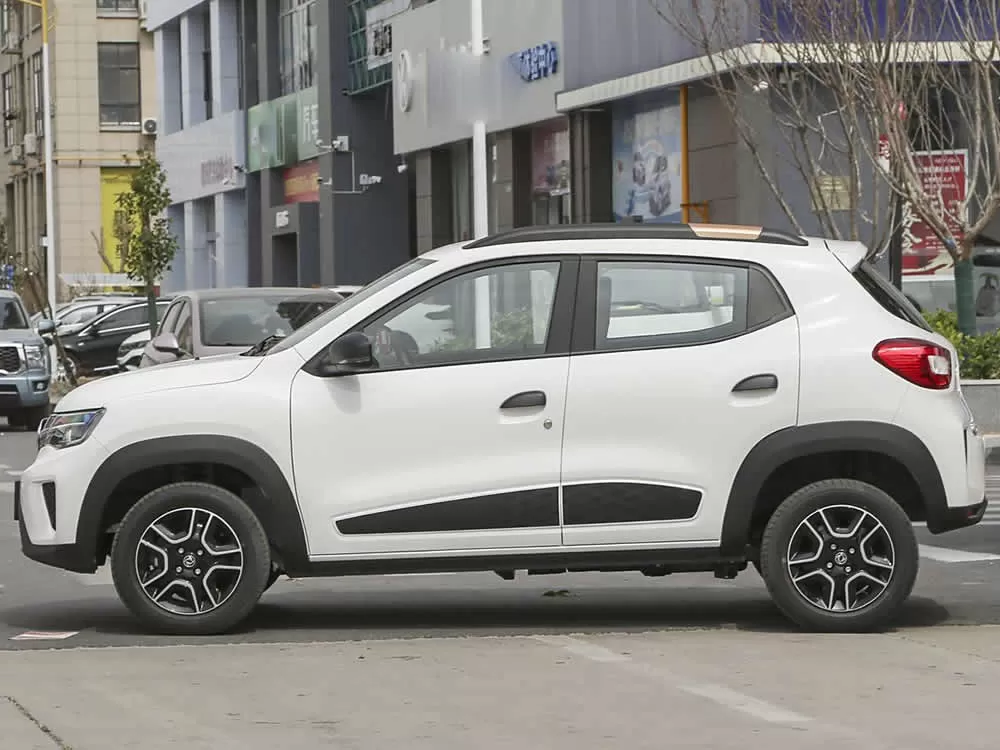

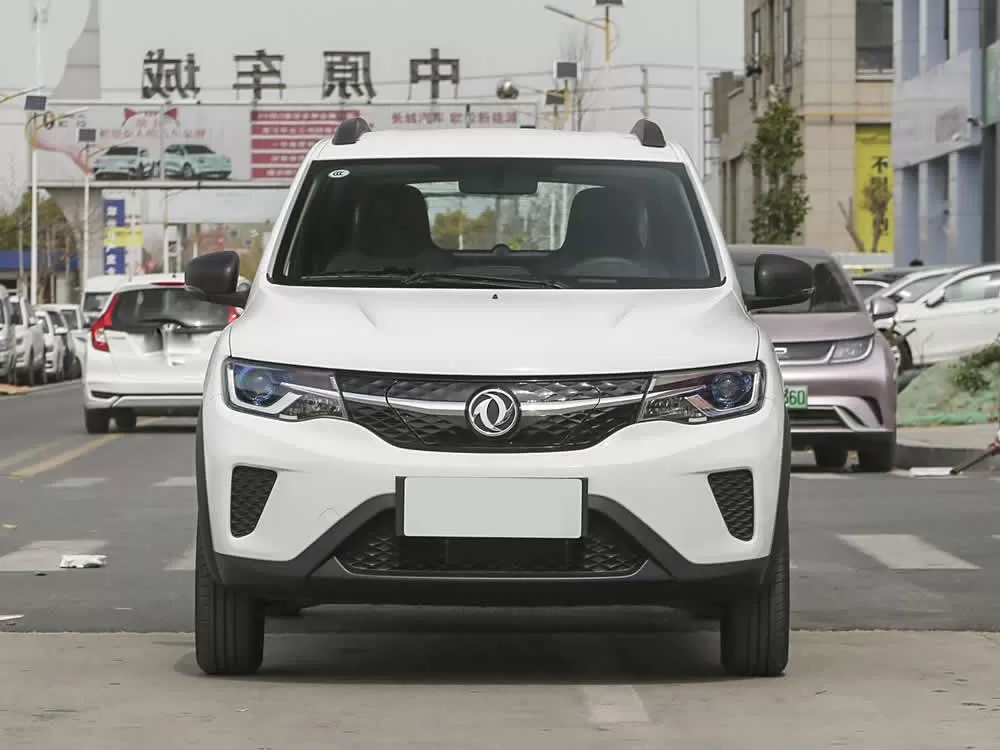

Dongfeng NAMMI EX1 2023 is a micro pure electric SUV produced by Dongfeng Automobile, which is positioned as a city commuter. The body size is 3732×1579×1515mm, the wheelbase is 2423mm, and it adopts a five-door five-seat layout. The overall shape is mainly square lines. The front face is equipped with a closed grille and polygonal halogen headlights, and the floating roof design shows a visual style that combines power and youth. The body color is based on elegant white. Some models can choose a contrasting roof. The door adopts a flat door design, and the tire specification is 165/70 R14.

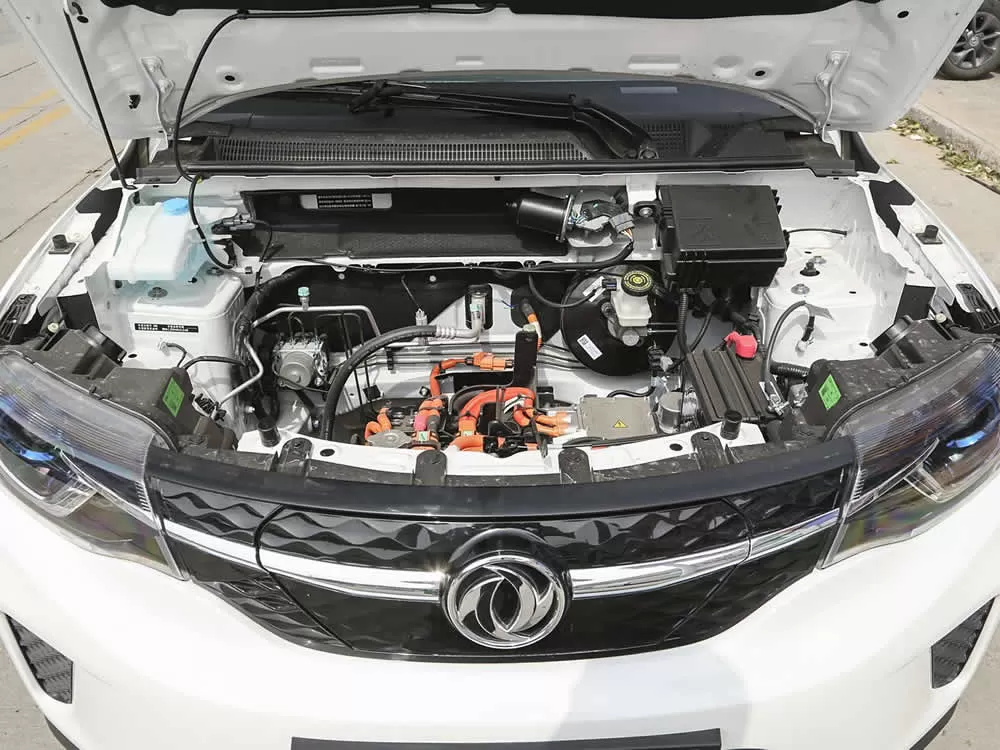

The car is equipped with a permanent magnet synchronous motor with a maximum power of 33kW (45 horsepower) and a peak torque of 125N·m. It is matched with a lithium iron phosphate battery pack. The pure electric range under CLTC conditions is 201km. It supports 0.5-hour fast charging (30%-80%) and slow charging mode, and the maximum speed is 100km/h, which meets daily commuting needs. The chassis adopts a combination of front McPherson independent suspension and rear longitudinal arm torsion beam non-independent suspension, with a minimum turning radius of 4.6 meters, which optimizes the handling flexibility in narrow urban roads.
The 2023 model is based on the PRO Lightning version:

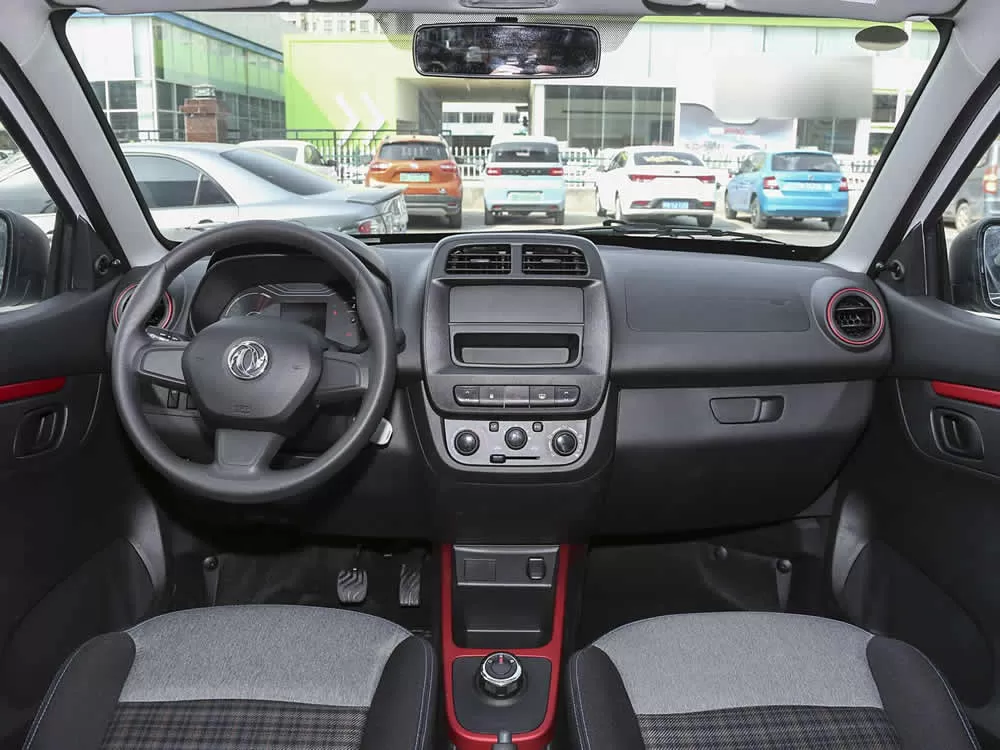

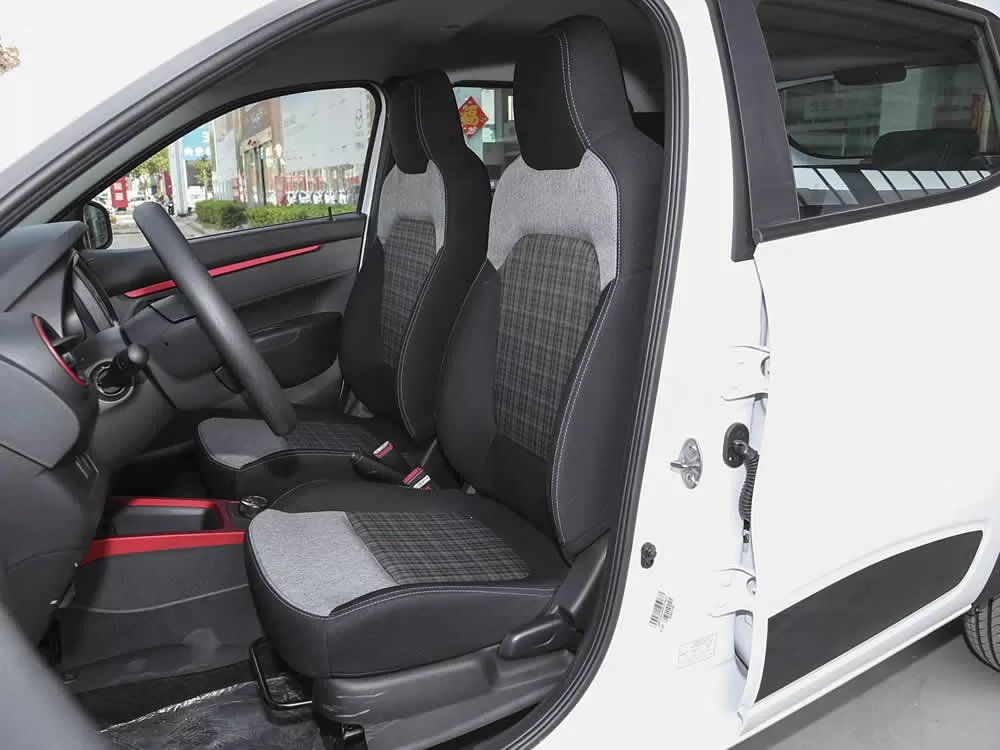

Standard fabric seats, manual air conditioning and 7-inch LCD instrument, the central control area retains physical buttons, equipped with mechanical handbrake and USB interface, focusing on pragmatism;
Adopting a dark interior design, a storage slot is set inside the door, the rear seats are fixed and cannot be folded down, and the basic volume of the trunk meets daily loading needs;
Standard ABS+EBD, tire pressure monitoring and body stability control system, high-end models add dual airbags for the main and co-driver to improve passive safety performance.
The battery pack of the Dongfeng NAMMI EX1 2023 adopts IP67 protection level and integrates low-temperature preheating technology to ensure charging efficiency and endurance stability in cold environments. The car is equipped with a halogen light source lighting system, and some models can be equipped with a reversing image function as an option. The door hinges and chassis structure are modularly designed to reduce maintenance costs. With its flexible body size and reliable three-electric system, the car has become a cost-effective choice for short-distance travel in the city and family transfers.
|
Configuration parameters |
2023 PRO Light Wind Edition Lightning |
|
Basic Parameters |
|
|
Availability |
2023.03 |
|
level |
Small SUV |
|
Energy Type |
Pure Electric |
|
CLTC pure electric cruising range (km) |
201 |
|
Body |
|
|
Body structure |
5-door 4-seater SUV |
|
Length(mm) |
3732 |
|
Width(mm) |
1579 |
|
Height(mm) |
1515 |
|
Wheelbase(mm) |
2423 |
|
Electric Motor |
|
|
Motor Type |
Permanent magnet/synchronous |
|
Total motor power (kW) |
33 |
|
Total motor horsepower (Ps) |
45 |
|
Total torque of the motor (N·m) |
125 |
|
Number of drive motors |
Single motor |
|
Motor layout |
Pre |
|
Battery / Charging |
|
|
Battery Type |
Lithium iron phosphate battery |
|
Battery brand |
Guoxuan High-tech |
|
CLTC pure electric cruising range (km) |
201 |
|
Battery energy (kWh) |
15.974 |
|
Battery energy density (Wh/kg) |
110 |
|
Power consumption per 100 km (kWh/100km) |
9.3 |
|
Battery fast charging time (hours) |
0.53 |
|
Battery slow charging time (hours) |
3 |
|
Transmission |
|
|
Gearbox Type |
Fixed gear ratio gearbox |
|
Chassis steering |
|
|
Drive mode |
Front front drive |
|
Front suspension type |
McPherson independent suspension |
|
Rear suspension type |
Torsion beam non-independent suspension |
|
Power type |
Electric power assist |
|
Wheel brakes |
|
|
Front brake type |
Disc |
|
Rear brake type |
Drum |
|
Parking brake type |
Handbrake |
|
Passive safety |
|
|
Driver/passenger airbag |
Main/Secondary |
|
Active safety |
|
|
ABS anti-lock braking system |
● |
|
Braking force distribution (EBD/CBC, etc.) |
● |
|
Brake assist (EBA/BAS/BA, etc.) |
- |
|
Tire pressure monitoring function |
Tire pressure alarm |
|
Driving control |
|
|
Official 0-50km/h acceleration (s) |
7 |
|
Maximum speed (km/h) |
100 |
|
Driving Hardware |
|
|
Front/rear parking radar |
- |
|
Driving Features |
|
|
Cruise control system |
- |
|
Appearance / anti-theft |
|
|
Rim material |
steel |
|
Exterior lighting |
|
|
Low beam light source |
halogen |
|
High beam light source |
halogen |
|
Skylight / Glass |
|
|
Front/rear electric windows |
Front/Back |
|
Exterior mirrors |
|
|
Exterior mirror function |
- |
|
Screen / System |
|
|
Central control color screen |
- |
|
Intelligent Configuration |
|
|
Internet of Vehicles |
- |
|
Steering wheel /interior mirror |
|
|
Steering wheel material |
plastic |
|
Gear shifting |
Electronic knob shift |
|
Trip computer display screen |
monochrome |
|
In-car charging |
|
|
Multimedia/charging port |
- |
|
Seating Configuration |
|
|
Seat Material |
Fabric |
|
Main seat adjustment |
Front and rear adjustment, backrest adjustment |
|
Co-seat adjustment method |
Front and rear adjustment, backrest adjustment |
|
Audio /Interior Lighting |
|
|
Number of speakers |
- |
|
Air conditioning / refrigerator |
|
|
Air conditioning temperature control method |
Manual air conditioning |
|
color |
|
|
Appearance Color |
Ruby Red, Elegant White, Morning Breeze Blue, Gilded Black |
|
Interior Color |
Black/Red |
