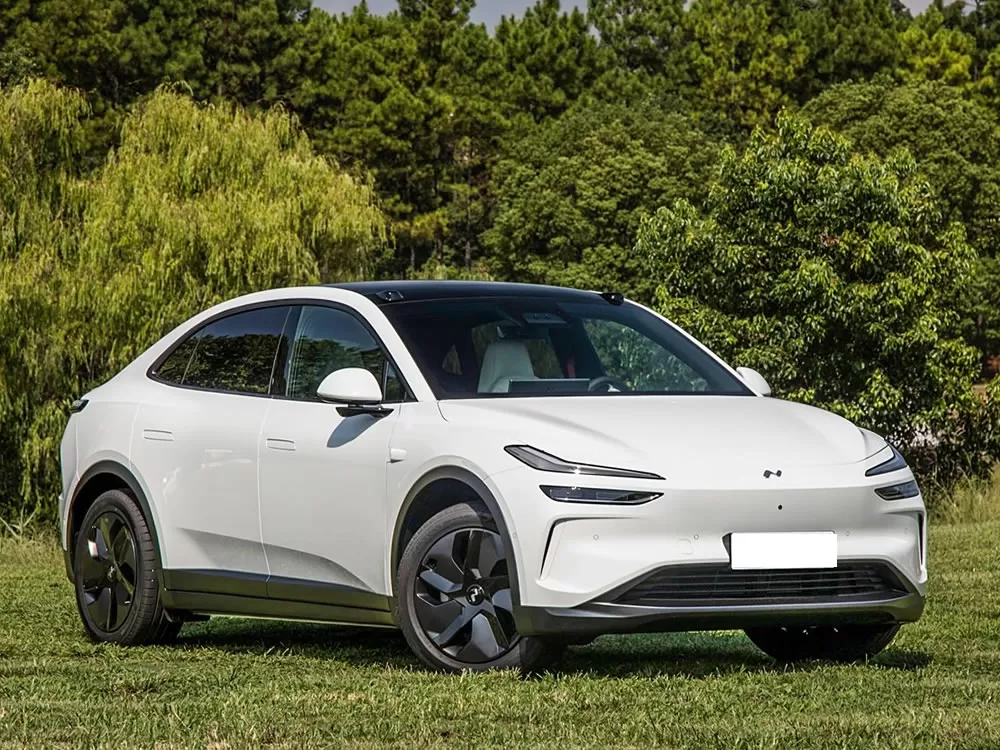

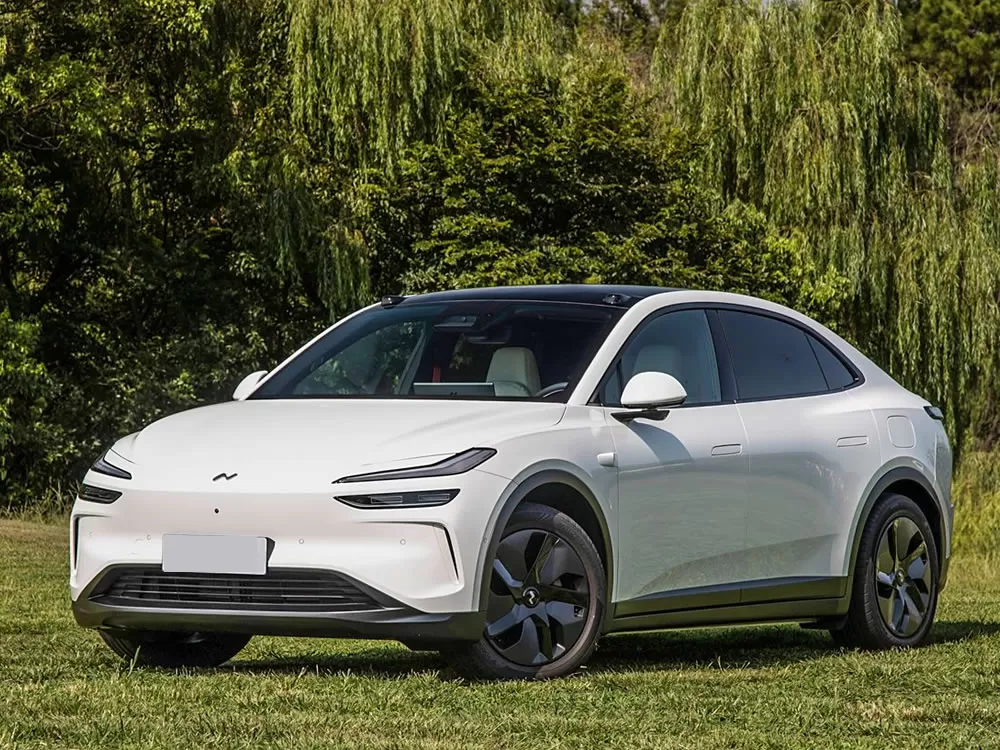

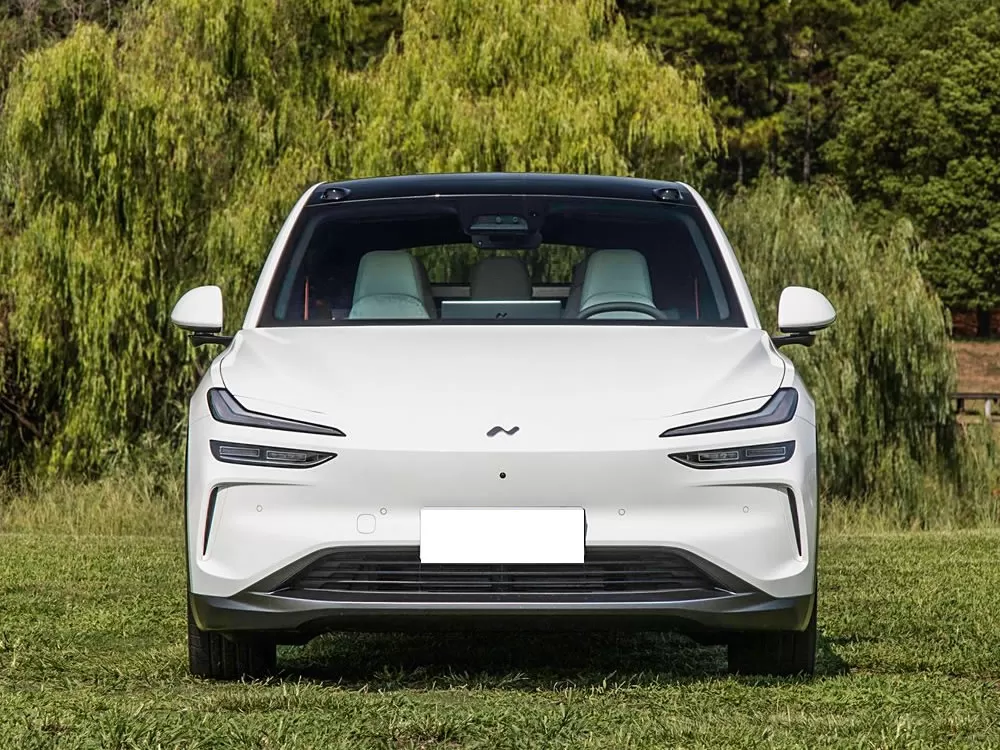

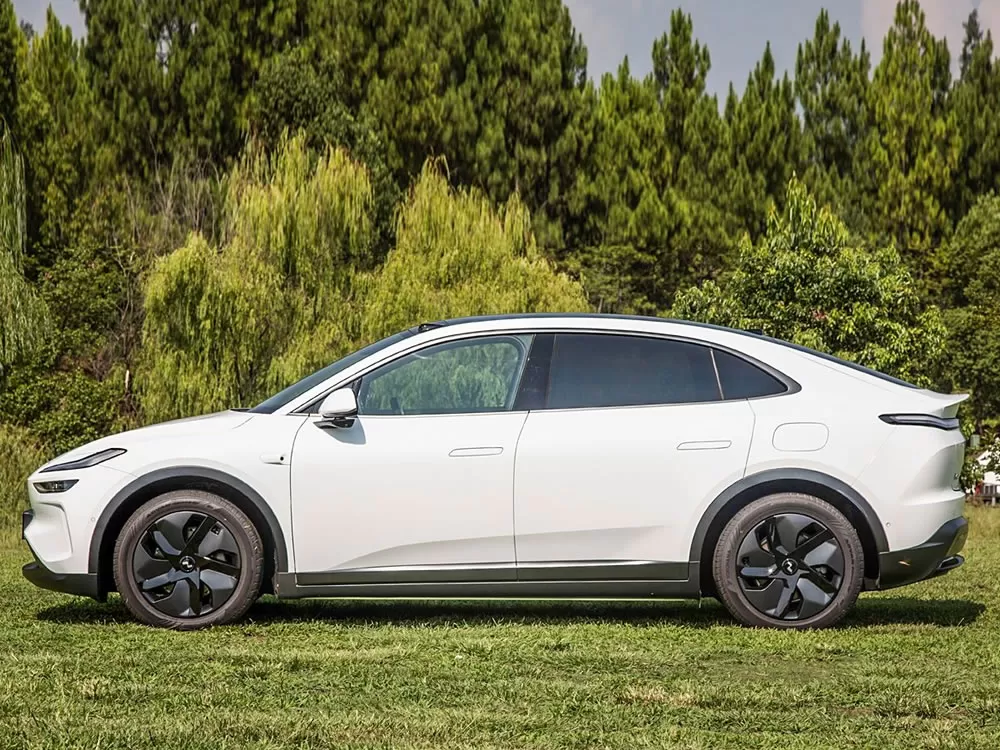

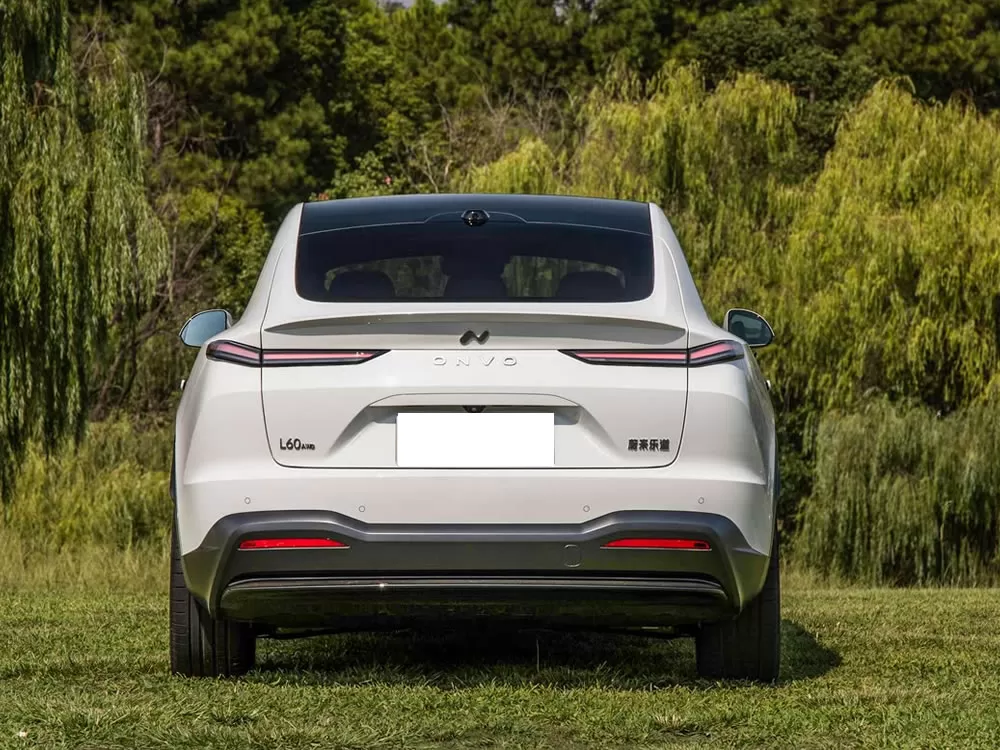

NIO ONVO L60 2024

Vehicle BrandNIO
Year2024
Price$ 23646-29246
NEDC(km)700(km)
Total motor power(kW)340(kW)
Size(mm)4828*1930*1616mm
Seats5
Motor(Ps)462
Fast Charge Time(Hours)0.41
Battery typeTernary lithium battery
Battery energy(kWh)85(kWh)
Motor Total Torque(NM)440
Tyre Sizes245/50 R19

Description
Specification

The 2024 NIO Ledao L60 is positioned as a medium-sized smart pure electric SUV. It is produced on the same line as the brand models based on the NIO F2 factory. It adopts a family-style closed front face and split "steaming" light group design, with a drag coefficient of 0.229, and provides 7 body colors such as Yunxia Purple. The body size is 4828×1930×1616mm, the wheelbase is 2950mm, equipped with frameless doors and electric hatchback tailgate, and the trunk volume is 495L (expanded to 1505L). The entire series is equipped with a 13-inch HUD head-up display and a 17.2-inch central control screen as standard, equipped with Qualcomm 8295 chip and ONVO Smart Driving intelligent driving system, supporting full-scene voice and high-speed city navigation assistance.

The main models of the 2024 model include:

Rear-wheel drive standard endurance version: single motor 240kW power, CLTC endurance of 555km, standard 30 sensing hardware and 254TOPS computing power, focusing on basic intelligent experience;

Four-wheel drive standard endurance version: dual motor 340kW combined power, 525km endurance, 4.6 seconds to break 100, enhanced power performance;

Rear-wheel drive long endurance version: endurance increased to 730km, added seat ventilation/heating and 180-degree flat co-pilot function, suitable for family long-distance travel;

Four-wheel drive long endurance version: 700km endurance + dual motor four-wheel drive combination, equipped with air suspension and Comf.Pro cloud comfort seat, taking into account performance and luxury.

The 2024 model of NIO Ledao L60 achieves efficient energy replenishment and full-scene coverage through the 900V high-voltage platform, steel-aluminum hybrid body and NIO battery swap network.

Model	Ledao L60 2024 60kWh rear-wheel drive version	Ledao L60 2024 85kWh rear-wheel drive version	Ledao L60 2024 60kWh 4WD version	Ledao L60 2024 85kWh 4WD version
Basic parameters
Energy Type	Pure Electric	Pure Electric	Pure Electric	Pure Electric
Availability	2024.09	2024.09	2024.09	2024.09
CLTC pure electric range (km)	555	730	525	700
Battery fast charging time (hours)	0.41	0.41	0.41	0.41
Battery fast charge capacity range (%)	10 - 80	10 - 80	10 - 80	10 - 80
Maximum power (kW)	240	240	340	340
Maximum torque (N・m)	305	305	440	440
Motor (Ps)	326	326	462	462
Length, width and height (mm)	482819301616	482819301616	482819301616	482819301616
Official 0 - 100km/h acceleration (s)	5.9	5.9	4.6	4.6
Official 100 - 0km/h braking (m)	36.8	36.8	36.8	36.8
Maximum speed (km/h)	200	200	203	203
Electric energy equivalent fuel consumption (L/100km)	1.40	1.40	1.47	1.47
Vehicle warranty	Four years or 100,000 km	Four years or 100,000 km	Four years or 100,000 km	Four years or 100,000 km
Curb weight(kg)	1885	1895	1955	1965
Maximum full load mass (kg)	2320	2320	2400	2400
Body
Length(mm)	4828	4828	4828	4828
Width(mm)	1930	1930	1930	1930
Height(mm)	1616	1616	1616	1616
Wheelbase(mm)	2950	2950	2950	2950
Front wheel track (mm)	1666	1666	1666	1666
Rear wheelbase(mm)	1677	1677	1677	1677
Minimum ground clearance without load (mm)	175	175	175	175
Approach angle (°)	18	18	17	17
Departure angle(°)	twenty one	twenty one	twenty one	twenty one
Minimum turning radius (m)	5.4	5.4	5.75	5.75
Number of doors	5	5	5	5
Number of seats	5	5	5	5
Trunk volume (L)	495 - 1505	495 - 1505	495 - 1505	495 - 1505
Drag coefficient (Cd)	0.229	0.229	0.229	0.229
Electric Motor
Previous Motor Brand	-	-	Weilai Power	Weilai Power
Rear motor brand	Weilai Power	Weilai Power	Weilai Power	Weilai Power
Front motor model	-	-	YS198S001	YS198S001
Rear motor model	TZ188S001	TZ188S001	TZ188S001	TZ188S001
Motor Type	Permanent Magnet / Synchronous	Permanent Magnet / Synchronous	Permanent Magnet / Synchronous	Permanent Magnet / Synchronous
Total motor power (kW)	240	240	340	340
Total motor torque (N・m)	305	305	440	440
Maximum power of front motor (kW)	-	-	100	100
Front motor maximum torque (N・m)	-	-	135	135
Maximum power of rear motor (kW)	240	240	240	240
Maximum torque of rear motor (N・m)	305	305	305	305
Number of drive motors	Single motor	Single motor	Dual motors	Dual motors
Motor layout	Post	Post	Front + rear	Front + rear
Three-electric system warranty	Eight years or 160,000 km	Eight years or 160,000 km	Eight years or 160,000 km	Eight years or 160,000 km
Battery/Charging
Battery Type	Lithium iron phosphate battery	Ternary lithium battery	Lithium iron phosphate battery	Ternary lithium battery
Battery brand	CATL (Jiangsu Times),CATL (Zhongzhou Times),Fudi	China New Aviation	CATL (Jiangsu Times), CATL (Zhongzhou Times), Fudi	China New Aviation
Battery cooling method	Liquid Cooling	Liquid Cooling	Liquid Cooling	Liquid Cooling
Battery Replacement	support	support	support	support
Battery energy (kWh)	60	85	60	85
Power consumption per 100 km (kWh/100km)	12.1	12.1	12.7	12.7
Fast charging function	support	support	support	support
High voltage fast charging	support	support	support	support
High voltage platform (V)	900	900	900	900
Slow charging port location	Left rear side of the car	Left rear side of the car	Left rear side of the car	Left rear side of the car
Fast charging port location	Left rear side of the car	Left rear side of the car	Left rear side of the car	Left rear side of the car
External AC discharge power (kW)	3.3	3.3	3.3	3.3
Gearbox
Abbreviation	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox
Number of gears	1	1	1	1
Gearbox Type	Fixed gear ratio gearbox	Fixed gear ratio gearbox	Fixed gear ratio gearbox	Fixed gear ratio gearbox
Chassis steering
Drive mode	Rear-engine, rear-wheel drive	Rear-engine, rear-wheel drive	Dual motor four-wheel drive	Dual motor four-wheel drive
Four-wheel drive	-	-	Electric four-wheel drive	Electric four-wheel drive
Front suspension type	Double ball joint McPherson independent suspension	Double ball joint McPherson independent suspension	Double ball joint McPherson independent suspension	Double ball joint McPherson independent suspension
Rear suspension type	Five-link independent suspension	Five-link independent suspension	Five-link independent suspension	Five-link independent suspension
Power type	Electric power assist	Electric power assist	Electric power assist	Electric power assist
Vehicle structure	Load-bearing	Load-bearing	Load-bearing	Load-bearing
Wheel brake
Front brake type	Ventilated disc	Ventilated disc	Ventilated disc	Ventilated disc
Rear brake type	Ventilated disc	Ventilated disc	Ventilated disc	Ventilated disc
Parking brake type	Electronic parking brake	Electronic parking brake	Electronic parking brake	Electronic parking brake
Front tire specifications	245/50 R19 245/45 R20	245/50 R19 245/45 R20	245/50 R19 245/45 R20	245/50 R19 245/45 R20
Rear tire specifications	245/50 R19 245/45 R20	245/50 R19 245/45 R20	245/50 R19 245/45 R20	245/50 R19 245/45 R20
Spare tire specifications	none	none	none	none
Passive safety
Driver/passenger airbag	Main/Secondary	Main/Secondary	Main/Secondary	Main/Secondary
Front/Rear Side Airbags	Front/Back	Front/Back	Front/Back	Front/Back
Front/rear head airbags (curtain airbags)	Front/Back	Front/Back	Front/Back	Front/Back
Front center airbag	have	have	have	have
Active safety
ABS Anti-lock Braking System	have	have	have	have
Braking force distribution (EBD/CBC, etc.)	have	have	have	have
Brake assist (EBA/BAS/BA, etc.)	have	have	have	have
Traction control (ASR/TCS/TRC, etc.)	have	have	have	have
Vehicle stability control (ESC/ESP/DSC, etc.)	have	have	have	have
Tire pressure monitoring function	Tire pressure display	Tire pressure display	Tire pressure display	Tire pressure display
Seat belt not fastened reminder	Full vehicle	Full vehicle	Full vehicle	Full vehicle
ISOFIX child seat interface	have	have	have	have
Lane Departure Warning System	have	have	have	have
Active braking/active safety systems	have	have	have	have
Fatigue driving tips	have	have	have	have
DOW door opening warning	have	have	have	have
Forward Collision Warning	have	have	have	have
Rear Collision Warning	have	have	have	have
Sentinel Mode/Clairvoyance	have	have	have	have
Low speed warning	have	have	have	have
Built-in driving recorder	have	have	have	have
Roadside assistance call	have	have	have	have
Anti-roll system	have	have	have	have
Driving Control
Driving mode switch	Sport, Economy, Standard/Comfort, Custom/Personalized	Sport, Economy, Standard/Comfort, Custom/Personalized	Sport, Economy, Standard/Comfort, Snow, Custom/Personalized	Sport, Economy, Standard/Comfort, Snow, Custom/Personalized
Energy recovery system	have	have	have	have
Automatic parking	have	have	have	have
Hill start assist	have	have	have	have
Steep slope descent	have	have	have	have
Variable suspension function	Suspension hardness adjustment	Suspension hardness adjustment	Suspension hardness adjustment	Suspension hardness adjustment
Driving Hardware
Front/Rear Parking Radar	Front/Back	Front/Back	Front/Back	Front/Back
Driving assistance images	360-degree panoramic image, vehicle side blind spot image, transparent chassis/540-degree image	360-degree panoramic image, vehicle side blind spot image, transparent chassis/540-degree image	360-degree panoramic image, vehicle side blind spot image, transparent chassis/540-degree image	360-degree panoramic image, vehicle side blind spot image, transparent chassis/540-degree image
Assisted driving chip	Nvidia Orin-X	Nvidia Orin-X	Nvidia Orin-X	Nvidia Orin-X
Total chip computing power	254TOPS	254TOPS	254TOPS	254TOPS
Front perception camera	Binocular	Binocular	Binocular	Binocular
Number of cameras	11	11	11	11
Front perception camera pixels	8 million	8 million	8 million	8 million
Environmental awareness camera pixels	8 million	8 million	8 million	8 million
Surround view camera pixels	3 million	3 million	3 million	3 million
Number of cameras in the car	2	2	2	2
Number of ultrasonic radars	12	12	12	12
Millimeter wave radar quantity	1	1	1	1
Maximum detection distance ahead	687 meters	687 meters	687 meters	687 meters
Driving functions
Cruise control system	Full-speed adaptive cruise control	Full-speed adaptive cruise control	Full-speed adaptive cruise control	Full-speed adaptive cruise control
Driver Assistance Systems	ONVO Smart Driving	ONVO Smart Driving	ONVO Smart Driving	ONVO Smart Driving
Driving assistance level	L2	L2	L2	L2
Reverse side warning system	have	have	have	have
Satellite navigation system	have	have	have	have
Navigation traffic information display	have	have	have	have
Map Brand	Gaode	Gaode	Gaode	Gaode
High-precision map	have	have	have	have
Lane assist	have	have	have	have
Lane Keeping Assist System	have	have	have	have
Lane centering	have	have	have	have
Road traffic sign recognition	have	have	have	have
Assisted parking	have	have	have	have
Remote control parking	have	have	have	have
Lane change assistance	have	have	have	have
Automatic exit/entry of auxiliary ramp	have	have	have	have
Traffic light recognition	have	have	have	have
Remote Summon	have	have	have	have
Hands-off detection	have	have	have	have
Start reminder	have	have	have	have
Assisted driving section	Urban roads, highways	Urban roads, highways	Urban roads, highways	Urban roads, highways
Appearance/ Anti-theft
Rim material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Frameless door design	have	have	have	have
Electric trunk	have	have	have	have
Electric trunk position memory	have	have	have	have
Central locking system in the car	have	have	have	have
Key Type	Bluetooth key, NFC/RFID key	Bluetooth key, NFC/RFID key	Bluetooth key, NFC/RFID key	Bluetooth key, NFC/RFID key
Keyless start system	have	have	have	have
Keyless entry function	Full vehicle	Full vehicle	Full vehicle	Full vehicle
Hidden electric door handle	have	have	have	have
Active closed grille	have	have	have	have
Remote start function	have	have	have	have
Battery preheating	have	have	have	have
Discharge to the outside	have	have	have	have
Exterior lighting
Low beam light source	led	led	led	led
High beam light source	led	led	led	led
LED daytime running lights	have	have	have	have
Adaptive high and low beam	have	have	have	have
Automatic headlights	have	have	have	have
Turn signal lamp	have	have	have	have
Height-adjustable headlights	have	have	have	have
Headlight Delay Off	have	have	have	have
Skylight/ Glass
Skylight Type	Panoramic sunroof cannot be opened	Panoramic sunroof cannot be opened	Panoramic sunroof cannot be opened	Panoramic sunroof cannot be opened
Front/rear electric windows	Front/Back	Front/Back	Front/Back	Front/Back
One-touch window lifting function	Full vehicle	Full vehicle	Full vehicle	Full vehicle
Window anti-pinch function	have	have	have	have
Side window multi-layer soundproof glass	Front Row	Front Row	Front Row	Front Row
Rear side privacy glass	have	have	have	have
Car makeup mirror	Driver's seat + lighting, co-driver's seat + lighting	Driver's seat + lighting, co-driver's seat + lighting	Driver's seat + lighting, co-driver's seat + lighting	Driver's seat + lighting, co-driver's seat + lighting
Rear wiper	none	none	none	none
Rain sensor wiper function	Rain sensor	Rain sensor	Rain sensor	Rain sensor
Exterior mirrors
Exterior mirror function	Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic folding when reversing, automatic folding when locking the car	Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic folding when reversing, automatic folding when locking the car	Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic folding when reversing, automatic folding when locking the car	Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic folding when reversing, automatic folding when locking the car
Screen/ System

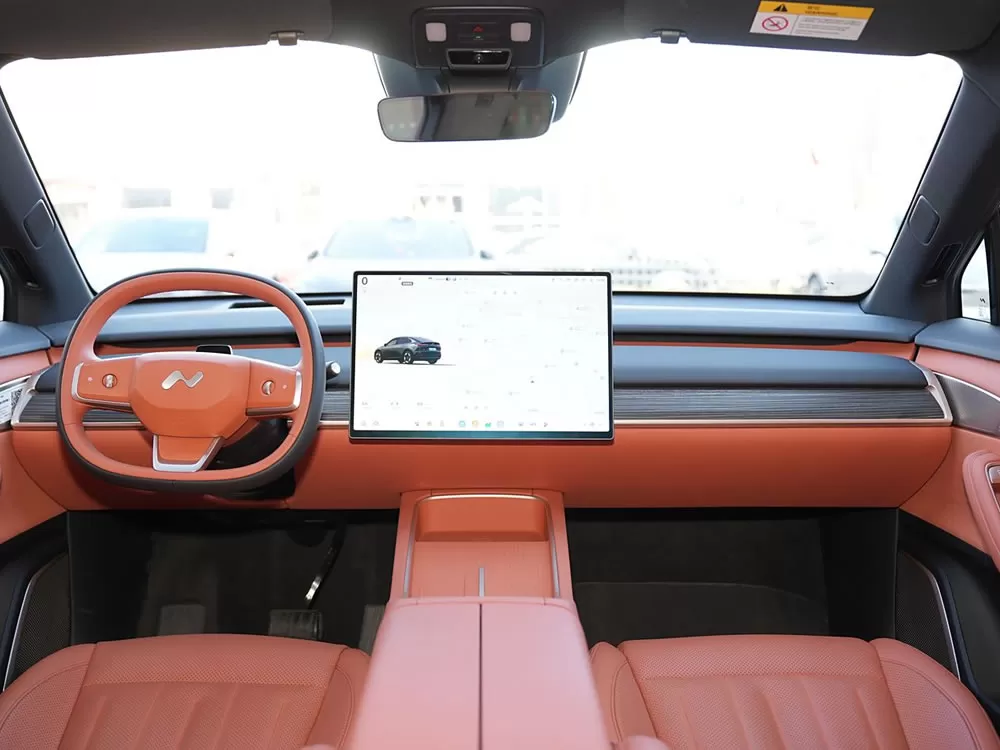

Central control color screen	Touch LCD screen	Touch LCD screen	Touch LCD screen	Touch LCD screen
Central control screen size	17.2 in	17.2 in	17.2 in	17.2 in
Central control screen resolution	3K	3K	3K	3K
Bluetooth/ Car Phone	have	have	have	have
Intelligent configuration
4G/5GNetwork	5G	5G	5G	5G
Door control	Window Control Vehicle startup charging management Air conditioning control Heated steering wheel Mobile APP remote power phase Heated seats Seat ventilation Vehicle condition inquiry/diagnosis Vehicle location/car search Car owner services ( find charging stations, gas stations, parking lots, etc.) Schedule maintenance/repair	Window Control Vehicle startup charging management Air conditioning control Heated steering wheel Mobile APP remote power phase Heated seats Seat ventilation Vehicle condition inquiry/diagnosis Vehicle location/car search Car owner services ( find charging stations, gas stations, parking lots, etc.) Schedule maintenance/repair	Window Control Vehicle startup charging management Air conditioning control Heated steering wheel Mobile APP remote power phase Heated seats Seat ventilation Vehicle condition inquiry/diagnosis Vehicle location/car search Car owner services ( find charging stations, gas stations, parking lots, etc.) Schedule maintenance/repair	Window Control Vehicle startup charging management Air conditioning control Heated steering wheel Mobile APP remote power phase Heated seats Seat ventilation Vehicle condition inquiry/diagnosis Vehicle location/car search Car owner services ( find charging stations, gas stations, parking lots, etc.) Schedule maintenance/repair
Steering wheel/interior mirror
Steering wheel position adjustment	Electric up and down + rear adjustment	Electric up and down + rear adjustment	Electric up and down + rear adjustment	Electric up and down + rear adjustment
Gear shifting	Electronic hand-held gear shift	Electronic hand-held gear shift	Electronic hand-held gear shift	Electronic hand-held gear shift
In-car charging
Multimedia/charging port	Type-C	Type-C	Type-C	Type-C
Number of USB/Type-C ports	2 front seats/ 1 rear seat	2 front seats/ 1 rear seat	2 front seats/ 1 rear seat	2 front seats/ 1 rear seat
USB/Type-C maximum charging power	60W	60W	60W	60W

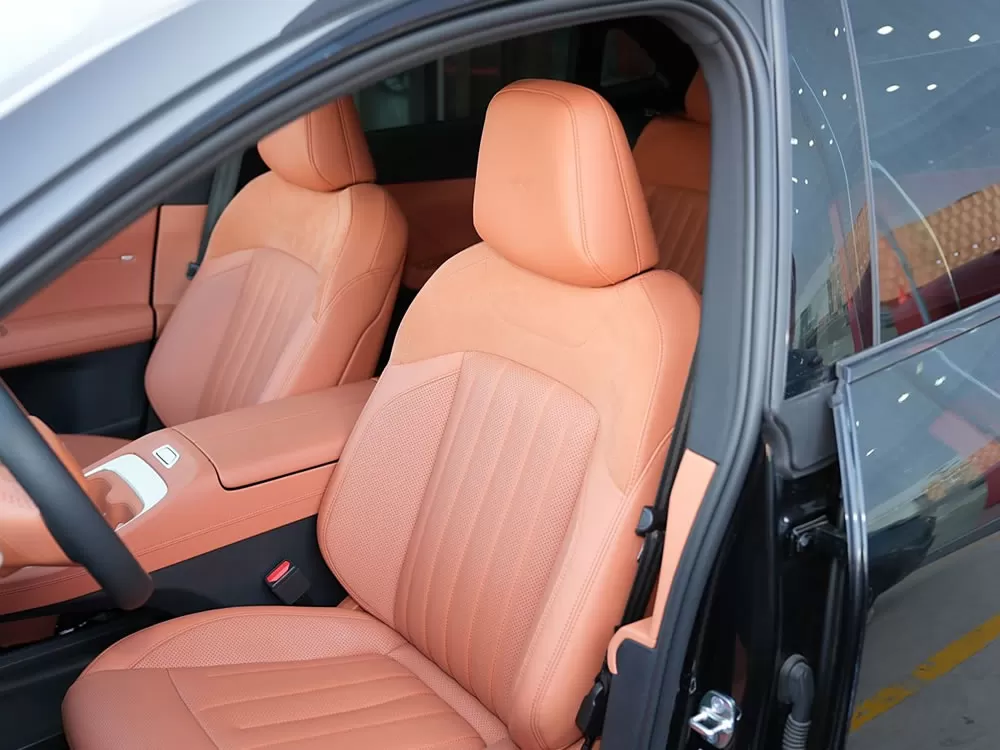

Seat Configuration
Main seat adjustment	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)
Co-seat adjustment method	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)	Front and rear adjustment Backrest adjustment Height adjustment (4-way) Lumbar support (4-way)
Front seat functions	Heating/ventilation/massage	Heating/ventilation/massage	Heating/ventilation/massage	Heating/ventilation/massage
Electric seat memory function	Driver seat/co-pilot seat	Driver seat/co-pilot seat	Driver seat/co-pilot seat	Driver seat/co-pilot seat
Audio/Interior Lighting
Number of speakers	18 speakers	18 speakers	18 speakers	18 speakers
Air conditioning/refrigerator
Air conditioning temperature control method	Automatic air conditioning	Automatic air conditioning	Automatic air conditioning	Automatic air conditioning
color
Appearance Color	Morning Orange/Polar Silver/Snow Peak White/Coastal Blue/Starry Sky Black/Distant Mountain Blue/Cloud RainPurple	Morning Orange/Polar Silver/Snow Peak White/Coastal Blue/Starry Sky Black/Distant Mountain Blue/Cloud RainPurple	Morning Orange/Polar Silver/Snow Peak White/Coastal Blue/Starry Sky Black/Distant Mountain Blue/Cloud RainPurple	Morning Orange/Polar Silver/Snow Peak White/Coastal Blue/Starry Sky Black/Distant Mountain Blue/Cloud RainPurple
Interior Color	Elegant black/black/warm brown black/soft white black/lilac tight	Elegant black/black/warm brown black/soft white black/lilac tight	Elegant black/black/warm brown black/soft white black/lilac tight	Elegant black/black/warm brown black/soft white black/lilac tight
