Wuling Yangguang EV 2024

Vehicle Brandwuling
Year2024
Price$ 8205-9691
NEDC(km)300(km)
Total motor power(kW)75(kW)
Size(mm)4985*1800*1975mm
Seats2/6
Motor(Ps)102
Fast Charge Time(Hours)0.5
Battery typelithium iron phosphate battery
Battery energy(kWh)41.9(kWh)
Motor Total Torque(NM)180
Tyre Sizes195/70 R15LT

Description
Specification

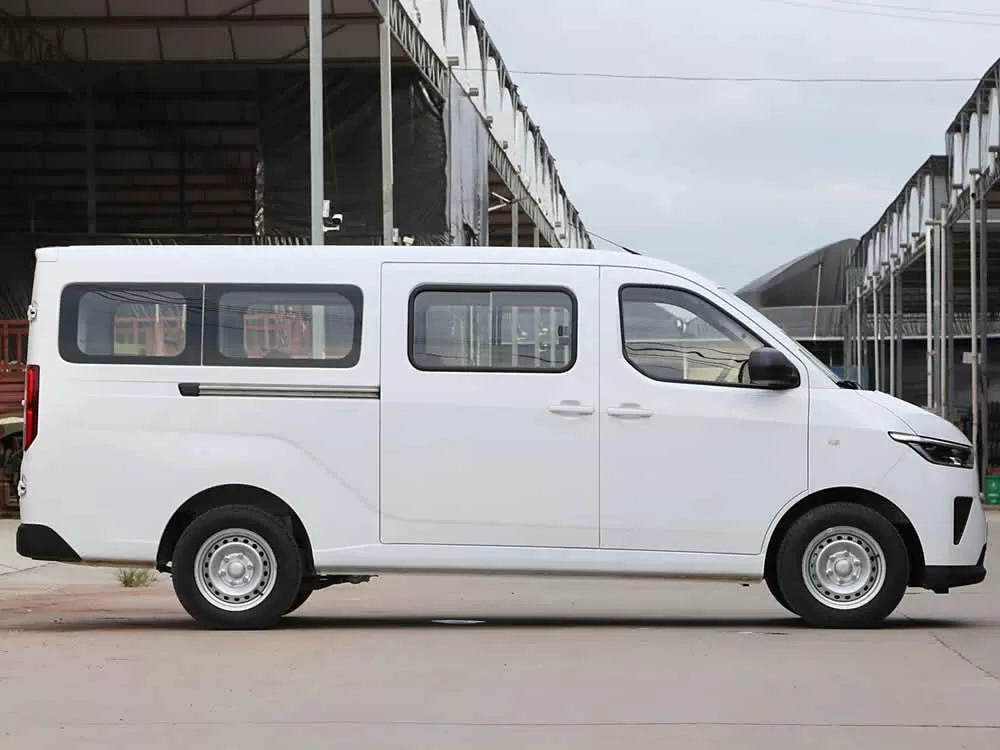

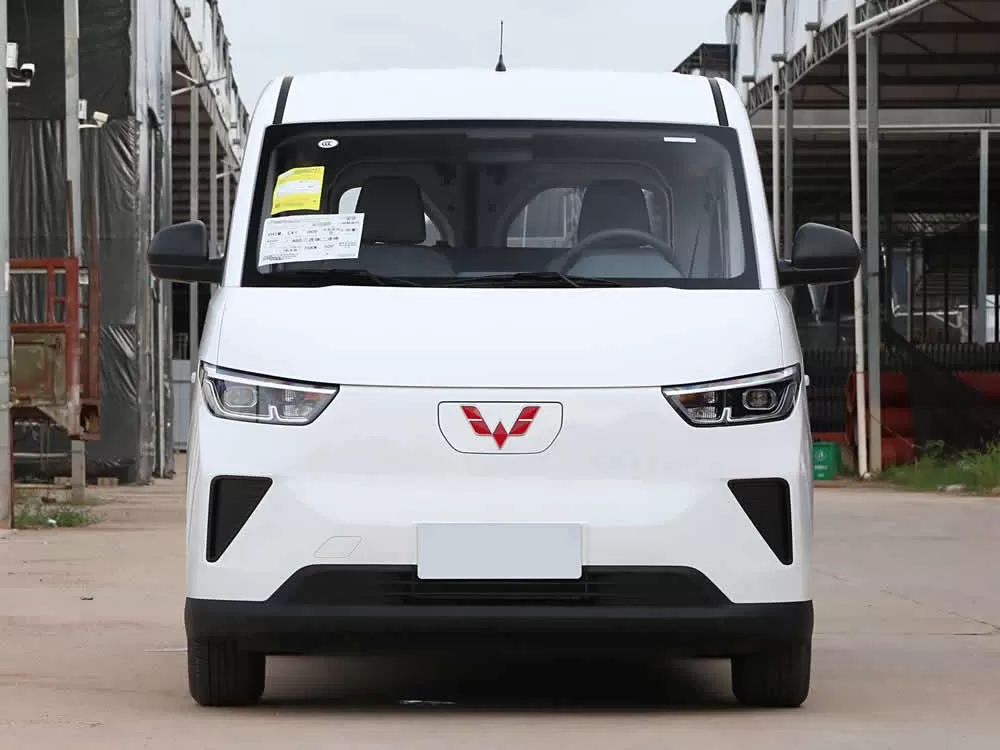

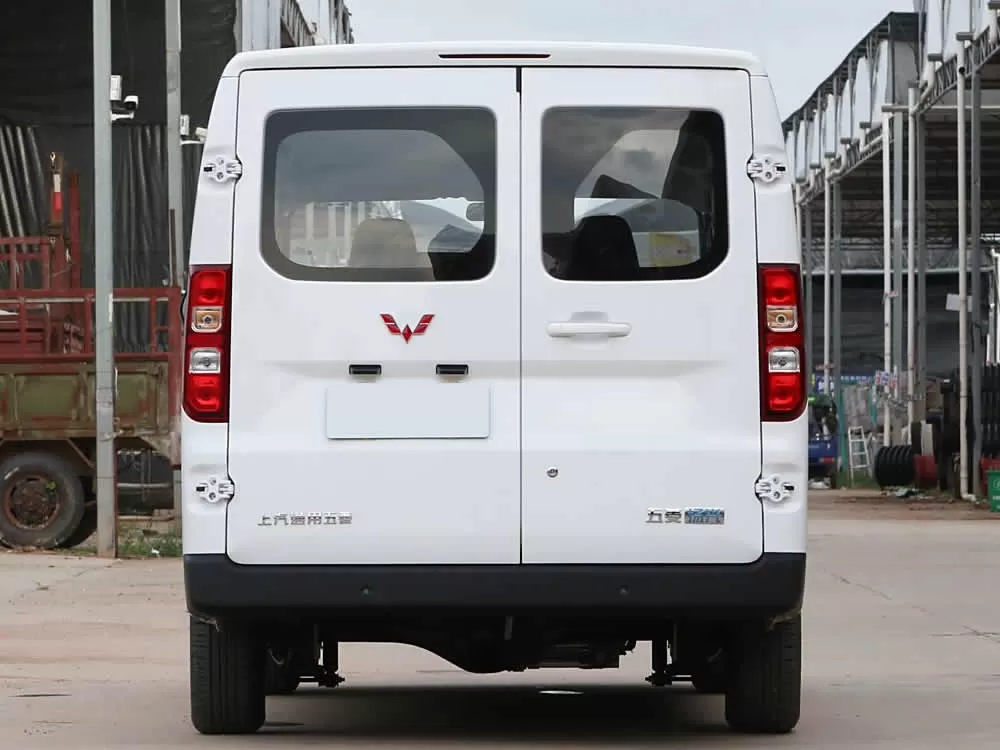

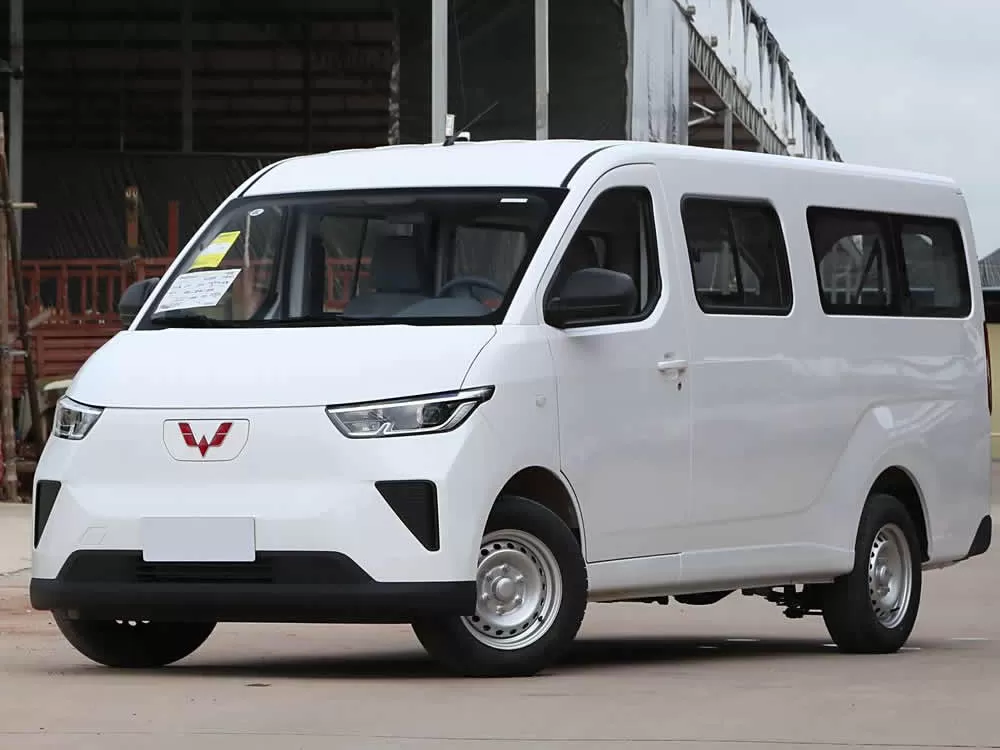

Wuling Yangguang 2024 is a new energy commercial and passenger vehicle produced by Shanghai General Motors Wuling. It focuses on urban logistics and multi-scenario cargo needs, with "large space, strong endurance, and high economy" as its core competitiveness. The vehicle adopts a new design language, equipped with crystal-cut LED headlights and aerodynamic rear spoiler, with a body size of 4985×1800×1975mm, a wheelbase of 3050mm, a cargo compartment volume of 6.5m³, and a load capacity of up to 1249kg. The double-side sliding doors are equipped with a 270° four-six split tailgate design, which significantly improves loading and unloading efficiency.

Core product highlights

Efficient power and endurance ‌

Equipped with Wuling Red No. 1 lithium iron phosphate battery pack, it provides two CLTC endurance versions of 230km and 300km, and supports 30%-80% DC fast charging in 30 minutes. The motor power covers 60kW and 75kW, with a peak torque of 220N·m and a maximum speed of 90km/h, taking into account both load requirements and energy economy.

Space and cargo optimization‌

The cargo compartment adopts the industry's first composite board lightweight material, with a large loading space of 3010×1715×1600mm. The front McPherson independent suspension and the rear 5-leaf spring combination, combined with 195/70R15LT high-load tires, ensure the stability of heavy-load scenarios.

Safety and comfort configuration‌

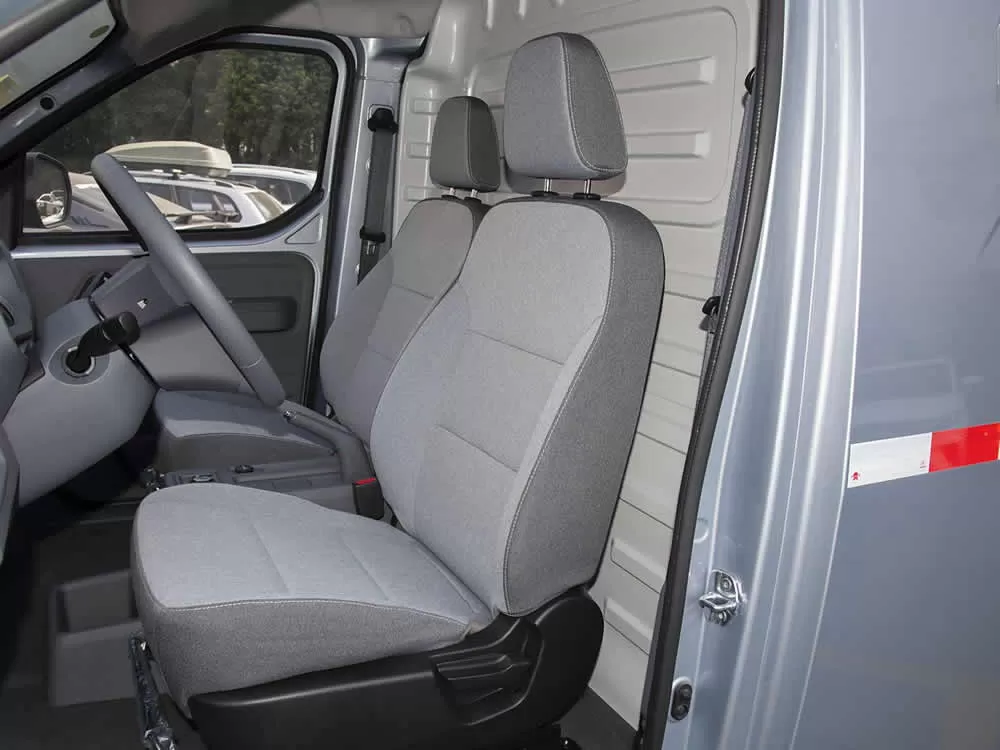

The body uses a high-strength cage structure, with ABS+EBD, EPS electronic power steering and creep function as standard. The comfort version upgrades the reversing image and leather seat fabric, the driver's seat supports multi-directional adjustment, and some models provide driver and passenger airbags.

Intelligent function expansion‌

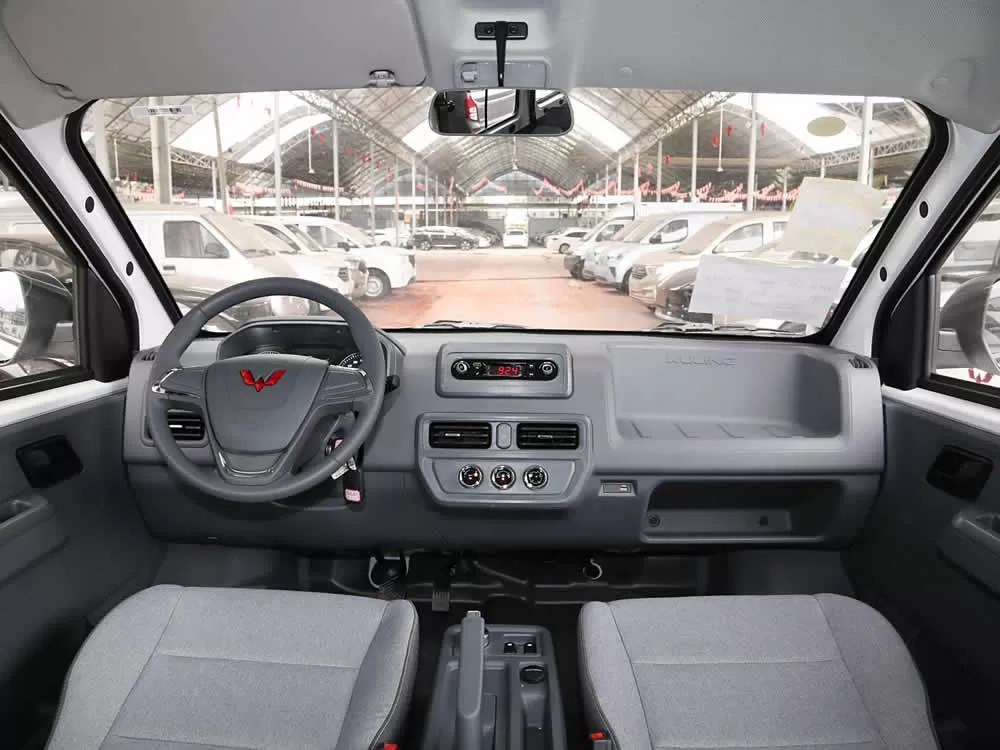

Equipped with a monochrome LCD instrument and a basic voice interaction system, retaining the physical button control area. Supports external discharge function, can meet outdoor power needs, and adapts to diversified commercial scenarios.

Overview of 2024 Model Versions‌

230KM Practical Window-sealed Version‌: Basic freight version, standard halogen headlights, steel wheels and ABS+EBD, focusing on pure commercial cargo scenarios;

300KM Practical Bus Version‌: Endurance upgrade version, adding rear ISOFIX interface and interior lighting system, taking into account light freight and multi-person commuting needs;

300KM Comfort Window-sealed Version‌: Function-enhanced model, equipped with reversing image, leather steering wheel and body stability system, improving driving safety and operational convenience.

Wuling Yangguang 2024 model has become an efficient operating partner for individual business owners and urban logistics practitioners with an ultra-low energy consumption cost of 5 cents per kilometer and a maintenance cost of only 2,400 yuan for 60,000 kilometers.

Configuration/model	2024 Wuling Yangguang pure electric 2-seater 60kW	2024 Wuling Yangguang pure electric 6-seater 60kW	2024 Wuling Yangguang pure electric 2-seater 75kW	2024 Wuling Yangguang pure electric 6-seater 75kW
‌Basic Parameters‌
Availability	2024.03	2024.05	2024.08	2024.11
level	Micro-face	Micro-face	Micro-face	Micro-face
Energy Type	Pure Electric	Pure Electric	Pure Electric	Pure Electric
CLTC pure electric cruising range (km)	230	230	300	300
‌Body
Body structure	truck	bus	truck	truck
Length, width and height (mm)	4985 1800 1975	4985 1800 1975	498518001975	49851800 1975
Wheelbase(mm)	3050	3050	3050	3050
Number of doors	4	4	4	4
Number of seats	2	6	2	6
Electric Motor
Total motor power (kW)	60	60	75	75
Total motor horsepower (Ps)	82	82	102	102
Total torque of the motor (N·m)	220	220	180	180
Number of drive motors	Single motor	Single motor	Single motor	Single motor
Motor layout	Post	Post	Post	Post
‌Battery / Charging‌
Battery Type	Lithium iron phosphate battery	Lithium iron phosphate battery	Lithium iron phosphate battery	Lithium iron phosphate battery
CLTC pure electric cruising range (km)	230	230	300	300
Battery energy (kWh)	31.9	31.9	41.9	41.9
Battery fast charging time (hours)	0.5	0.5	0.5	0.5
‌Transmission‌
Gearbox Type	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox
‌Chassis steering‌
Drive mode	Rear-engine, rear-wheel drive	Rear-engine, rear-wheel drive	Rear-engine, rear-wheel drive	Rear-engine, rear-wheel drive
Wheel brakes
Brake type (front/rear)	Disc/Drum	Disc/Drum	Disc/Drum	Disc/Drum
Passive safety
Driver/passenger airbag	-	Primary/Secondary	-	Primary/Secondary
Active safety
ABS anti-lock braking system	-	-	-	-
Driving control
Driving mode switch	-	-	-	-
‌Driving Hardware‌
Front/rear parking radar	Front/Back	Front/Back	Front/Back	Front/Back
Reversing Image	-	Reversing Image	-	Reversing Image
‌Driving Features‌
Cruise control system	-	-	-	-
‌Appearance / anti-theft‌
Rim material	iron	iron	iron	iron
‌Exterior lighting‌
Low beam light source	led	led	led	led
High beam light source	led	led	led	led
‌Skylight / Glass‌
Front/rear electric windows	-	-	-	-
Exterior mirrors
Exterior mirror function	-	-	-	-
‌Screen / System‌
Central control screen size	-	8 inches	-	8 inches
‌Intelligent Configuration‌
Internet of Vehicles	-	-	-	-
‌Steering wheel /interior mirror‌
Steering wheel material	plastic	plastic	plastic	plastic
Gear shifting	Electronic knob shift	Electronic knob shift	Electronic knob shift	Electronic knob shift
‌In-car charging‌
USB ports	USB	USB	USB	USB
‌Seating Configuration‌
Seat Material	Fabric	Fabric	Fabric	Fabric
‌Audio /Interior Lighting‌
Number of speakers	-	-	-	-
‌Air conditioning / refrigerator‌
Air conditioning temperature control method	Manual air conditioning	Manual air conditioning	Manual air conditioning	Manual air conditioning
